Description

The top model in our super-class explosion-proof industrial vacuum range: the IVS 100/75 M Z22 impresses with a wide range of applications, the highest level of safety and outstanding performance data.

Suitable for both mobile and stationary use, the vacuum cleaner is equipped with a 7.5 kW side channel blower with IE2 efficiency and soft start-up to avoid unwanted peaks in power when the machine is started. It is suitable for vacuuming very large quantities of fine dusts that are hazardous to health and potentially explosive dusts and is permitted for use in Zone 22 and certified for dust class M. This is partly due to a large and – thanks to the 16-pleated design – compact M-approved star filter.

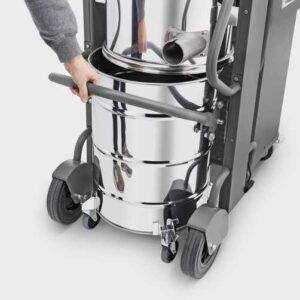

The horizontal filter shaker with gearbox ensures optimum suction power at all times, while the 100-litre stainless steel container with set-down mechanism is responsible for long work intervals and easy disposal.

There are various options for stowing accessories so that they are safe for transportation and do not get lost.

Features

Horizontal operation of filter cleaning system

  • The handle for manual filter cleaning is located at a convenient operating height and makes working comfortable.
  • Regardless of the amount of force applied by the user, a gearbox ensures consistent cleaning results.
  • Longer filter downtime due to more frequent filter cleaning and metered power transmission to the filter.

User-friendly machine handling

  • Hose hook and accessory storage ensure fast tool access and tidy storage.
  • Integrated cable hook for secure cable storage.

Optional remote control

  • Optional radio remote control for machine operation from a distance of up to 100 m.
  • Convenient, time-saving operation of the machine in a single forward movement.
  • Optimal space utilisation: the vacuum cleaner can be stored in unused or safety areas.

Technical Information

Supply voltage (Ph/V/Hz) 3 / 400 / 50
Air flow (l/s/m³/h) 148 / 536
Vacuum (mbar/kPa) 290 / 29
Container content (l) 100
Rated input power (kW) 7.5
Vacuuming type Electric
Filter areas (m²) 2
Connection nominal diameter ID 70
Accessory nominal diameter ID 70 ID 50
Sound pressure level (dB(A)) 73
Weight without accessories (kg) 180
Dimensions (L x W x H) (mm) 1202 x 686 x 1495

Delivery and Collection

Next day UK-wide delivery only £40, each way

We’re not able to offer delivery or collection on Saturdays, Sundays or Bank Holidays.

Your machine will be delivered between 8am and 5pm on your chosen rental start date (excluding Saturday, Sunday or Bank Holidays). Please ensure the correct person is present at the delivery address between these hours to sign for the machine and receive any training needed. If you have any questions please call us on 0345 222 8000.

You must call us on 0345 222 8000 or email [email protected] to terminate the Hire and obtain an ‘Off Hire Number’ on the last working day of the Hire period. Hires are not automatically terminated.

If the requested machine isn’t available we reserve the right to offer an alternative machine, alternative Hire dates, or cancel and refund the order.

Training

We offer more than just equipment delivery; our expert drivers provide comprehensive on-site demonstrations for each new professional cleaning machine hire. Upon arrival, drivers introduce themselves, thoroughly demonstrate the machine’s setup and operation, offer hands-on guidance, and provide tailored tips for efficient use. As certified trainers, they ensure customers feel confident using the equipment, answering questions and sharing best practices. This service reflects our commitment to exceptional customer support, enabling businesses to immediately maximize their new cleaning equipment’s potential and maintain high cleanliness standards.

Servicing And Maintenance

At Kärcher Hire, we understand sometimes machines break down, we prioritise keeping your business running smoothly with our best-in-class response to any breakdowns. In the unlikely event of a malfunction, our expert technicians will be onsite within 24 hours to repair your machine. If we are unable to repair the machine, we will exchange the faulty machine within 48 hours. For long-term rentals of 12 months or more, we provide annual service visits according to manufacturer recommendations to minimise unexpected downtime. Our proactive maintenance and rapid response ensure your cleaning machine remains operational, giving you confidence and peace of mind to complete the job.

User Manuals

IVS 100/75 M Z22 Product Information Download
IVS 100/75 M Z22 Operating Instructions Download

FAQs

What happens when I am finished with the machine?

+

It is your responsibility to off hire the equipment when you no longer need it. To avoid aborted journey’s we do not accept auto off hires and you must contact the hire team to obtain an off-hire reference. An off-hire reference will be provided to confirm the off hire and a collection date will be scheduled. To off hire please contact us.

Where can I get advice on which machine I need?

+

Our experts are on hand to offer advice and guidance to help you select the right machine for your job. Just call us on 0345 222 8000 or use live chat during our opening hours and our team will help you choose.

We offer site visits for more complex cleans or large volume hires.

How do I know which detergent I need?

+

Detergents are recommended for the following machines:

  • Scrubber dryers
  • Pressure washers
  • Carpet cleaners

Our experts can advise you on which would be the best detergent for your cleaning needs. Give our team a call today on  0345 222 8000
